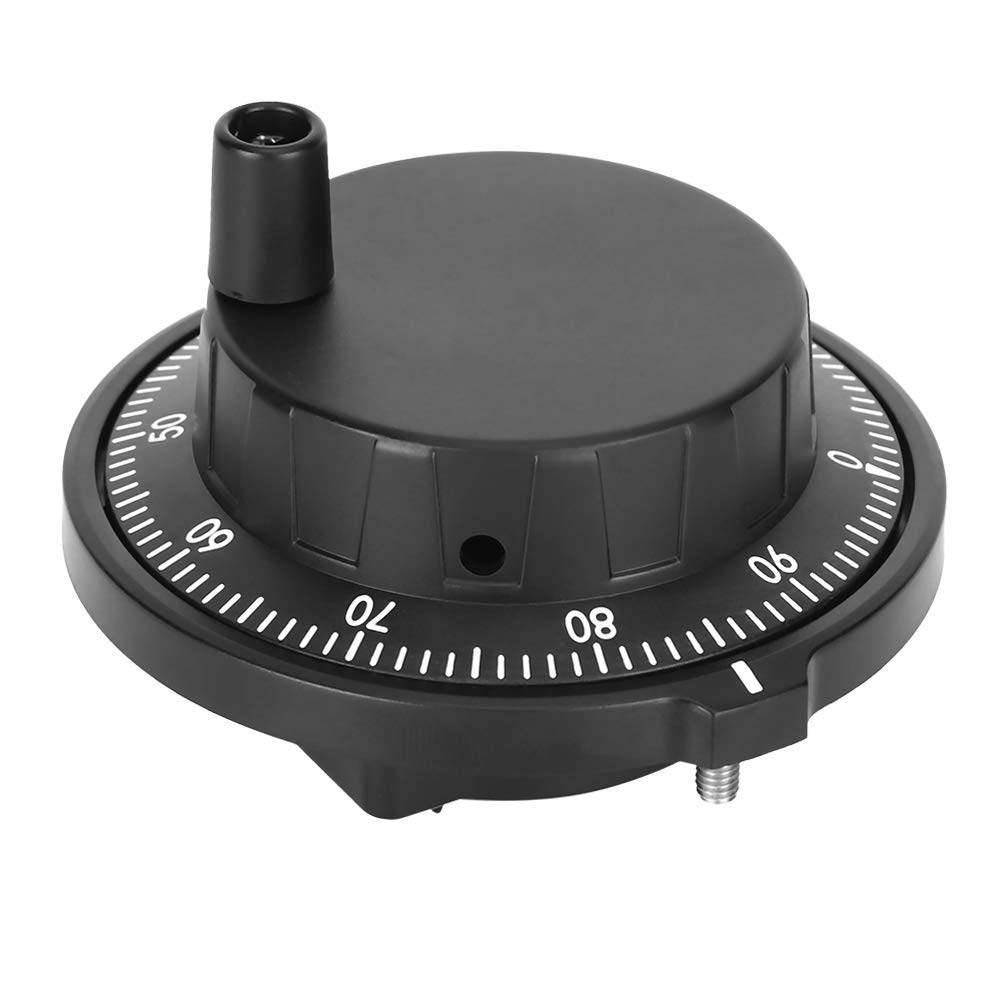

Electronic Handwheel for CNC Machines – 80mm Manual Pulse Generator with 100 PPR Encoder, Compatible with, LinuxCNC, and GRBL Controllers

1. High?end CNC handwheel, finely crafted, has excellent quality and good .2. High?quality plastic material, hard, ?, and has long servic.3. 5V, 100PPR, A A? B B?, suitable for 98% of Chinese systems, to better meet your needs.4. Small, compact, easy to carry and operate, can bring you more convenience.5. Well?made, excellent quality, higher work efficiency, and bring you a better experience.ec:Condition: Brand NewItem Type: HandwheelMaterial: PlasticColor: As the Picture ShownEncoder ecification:Power Supply Voltage: DC5±10%Pulse Number: 100PPROutput Voltage (VH) (Maximum): ?3.8VOutput Voltage (VL) (Minimum): ?0.3VOutput Current: 80mAModel Format: A.B.A-.B-Output DIFFReonse eed: 5KHzCurrent Consumption: 50mAStarting (Maximum): 150gAxial Volume (minimum): R 2kg±10%Rotation Life (minimum): 1KKROperating Temperature: 0?/+50?Storage Temperature: -10?/+70?Operating Humidity: 35-80%Vibration 0.5GStrike 2GWiring Table ecification: Output : A B V0 V+ A- B-Terminal-Line Driver A: 1 2 3 4 5 6Instruction: YP800-100B-1L represents a large handwheel with a diameter of 80mm, the output is 100 pulses, the working voltage is 5V, and the output mode is long-line output. This product is suitable for CNC machine tools, two orthogonal output (A, B), 100 pulses , The output mode is long-line drive.Package List:1 x Handwheel1 x Instruction3 x TerminalNotice:1. The encoder is a precision instrument. It is forbidden to knock, drop, bump, etc. during installation. Improper installation or use will affect the and servic of the encoder.2. Pay attention to the shaft load of the encoder during installation, and must not exceed the limit

• Small, compact, easy to carry and operate, can bring you more convenience.
• Effective : Oil-proof, water-resistance, IP54; This handwheel is easy to install and use, can return to normal, no high level output.
• Electronic CNC Manual Pulse Generator Hand Wheel Plastic A B A- B- Model Format Encoder Handwheel MPG
• Electronic Hand wheel is made of Highquality plastic material, hard, , and has long servic.
• Highquality plastic material, hard, , and has long servic.
